Digital Chrosziel Motor CDM-100

Product number: CDM-100

Product number: CDM-100

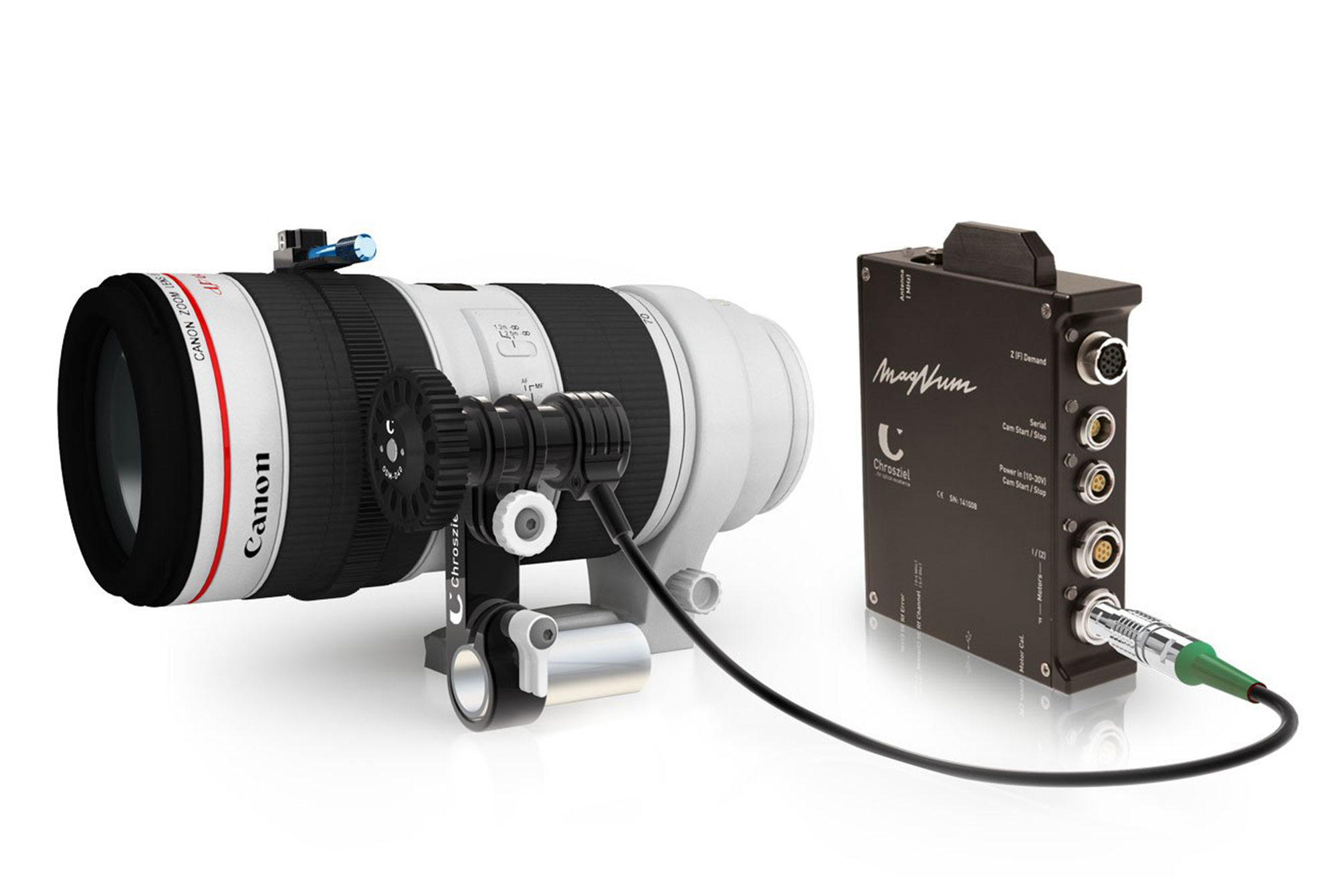

CDM-100 Chrosziel's Digital Motor, 24V operating voltage, with cable 800mm length and Lemo 7-Pin 1B standard connector.

With the Digital Motor CDM-100, we developed an extremely light weight, silent, small and horizontally aligned lens motor. It perfectly suites Gimbal, Drone and SteadiCam applications.


FEATURES


  • Perfect for Gimbals, Drones and SteadiCam
  • Horizontally aligned
  • Extremely light weight
  • Extremely silent
  • Very small and short housing
  • Motor housing with standard 19mm diameter
  • Smart gear attachement for secure operation and fast exchange
  • Two gear diameters (40 and 60mm), even for large lens pitches
  • Fixed motor cable additionally reducing motor size and weight
  • New, Universal Rod Clamp with integrated captive slider – quickly and easily adjustable for use with Ø 15mm or Ø 19mm rods


Technical details

  • Dimensions: L 63 mm, max. Diameter 25 mm (without gear)
  • Weight (without clamp): 97g without gear, ca. 110g with small gear
  • Voltage: max. 24V
  • Cable length: 70cm
  • Connector Lemo 1B 7-Pin
  • Two gears: Ø 40mm & Ø 60mm with mod 0.8
  • Gear Diameter Ø 40mm with mod 0.5 (CDM-D40-M05) or 0.6 (CDM-D40-M06) additionally available
  • 15mm / 19mm Universal Rod Clamp



Compatibility

  • Chrosziel Digital Motor CDM-100 compatible with:
    Chrosziel MagNum, Chrosziel Aladin MK II and 3rd party brands
  • Chrosziel Digital Motor CDM-100S compatible with:
    Chrosziel MagNum mini, Freefly Movi and others


In the Box

  • EU15-19 Universal Rod Clamp for Ø 15/19mm
  • CDM-D40 Gear Drive
    mod. 0.8, Ø 40mm
  • CDM-D60 Gear Drive
    mod. 0.8, Ø 60mm
